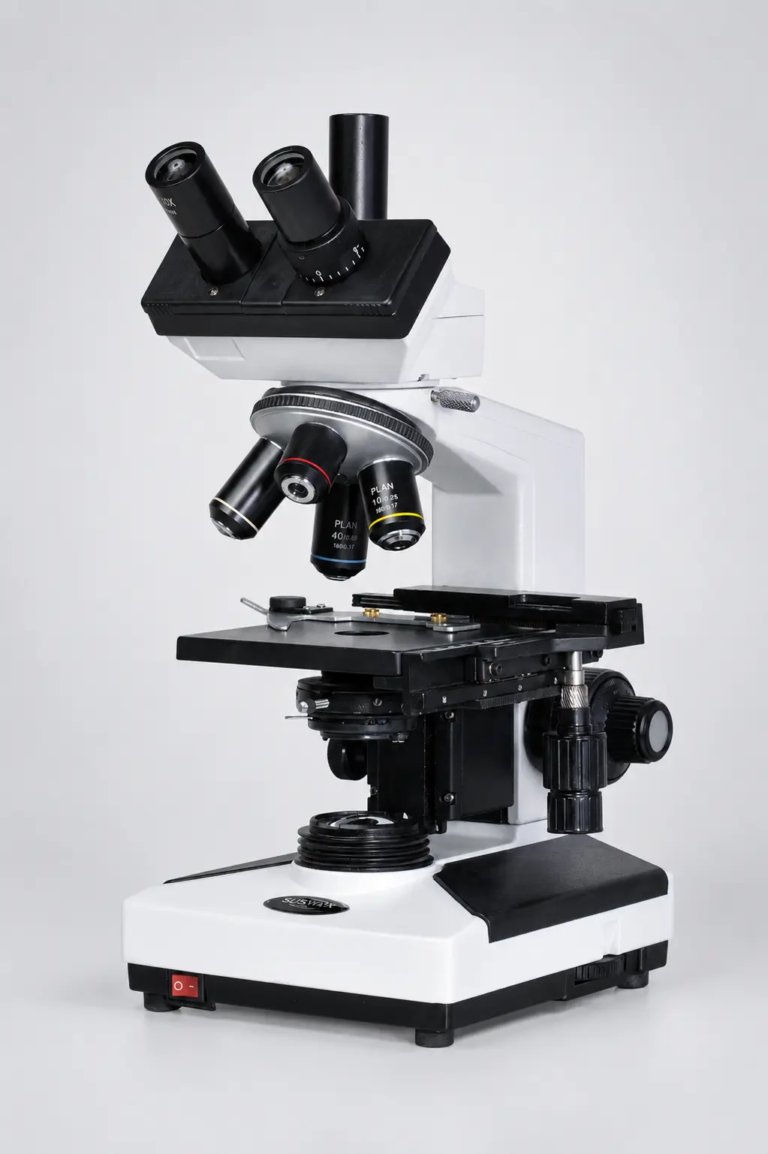

SKC 440 Ti Lab Microscope
SKC-440 Ti (Trinocular Advanced Biological Microscope)
The SUSWOX SKC-440 Ti is the flagship model of the SKC Series, designed for advanced laboratory diagnostics, research, digital microscopy and image documentation. Equipped with a dedicated trinocular viewing head, it enables direct integration with digital cameras for image capture, storage, processing and analysis.
Featuring high-contrast Semi-Plan Achromatic optics, precision mechanical construction and Köhler illumination compatibility, the SKC-440 Ti provides research-grade optical performance for pathology, life sciences, pharmaceutical research and academic laboratories. Its modular design also supports advanced techniques including phase contrast, darkfield and fluorescence microscopy.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- Professional Trinocular Viewing Head
- Camera Ready for Digital Imaging
- 360° Rotatable Observation Head
- High Contrast Semi-Plan / Plan Achromatic Objectives
- High Eye Point WF10X Eyepieces
- Ball-Bearing Quadruple Nosepiece
- Precision Mechanical Stage
- Köhler Illumination Compatible
- Bright Adjustable LED Illumination
- Anti-Fungal Multi-Coated Optical System
- Image Analysis Software Compatible
- Heavy-Duty Metal Construction
- Universal 90–240V SMPS Power Supply
- CE, ISI & ISO Certified
Technical Data
| Specification | Details |
| Model | SKC-440 Ti |
| Microscope Type | Advanced Biological Trinocular Microscope |
| Viewing Head | Trinocular, 45° Inclined, 360° Rotatable |
| Interpupillary Distance | 54–74 mm |
| Camera Port | Dedicated Trinocular Camera Port |
| Eyepieces | WF10X High Eye Point, FOV 18/20 mm |
| Optical System | Finite Optical System |
| Objectives | Semi-Plan / Plan Achromatic 4X, 10X, 40X(S), 100X Oil |
| Nosepiece | Dust-Protected Ball-Bearing Quadruple |
| Mechanical Stage | Hard-Coated Mechanical Stage |
| Stage Size | 145 × 125 mm |
| Condenser | Abbe N.A.1.25 with Iris Diaphragm |
| Focusing | Coaxial Coarse & Fine Focus |
| Illumination | 3W LED (Optional 5W/10W LED or Halogen) |
| Camera Compatibility | C-Mount Camera Adapters |
| Power Supply | 90–240V AC SMPS |
| Certifications | CE, ISI & ISO |
What’s in the Box
Standard Package
- SKC-440 Ti Trinocular Microscope
- Trinocular Viewing Head
- Pair of WF10X High Eye Point Eyepieces
- Semi-Plan Objective Set (4X, 10X, 40X, 100X Oil)
- Abbe Condenser with Iris Diaphragm
- Built-in LED Illumination
- Blue/White Filter
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Tissue Paper
- Power Cable
- User Manual
Optional Accessories
- C-Mount Camera Adapters (0.35X / 0.5X / 0.66X / 1X)
- Digital Camera System
- Image Analysis Software
- Plan 20X & 60X Objectives
- Phase Contrast Kit
- Darkfield Condenser
- Polarizing Kit
- Fluorescence Unit
- Infinity Corrected System
- Apochromatic Objectives
- Heating Stage
- Teaching Head
- Multi-Head Attachment
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
