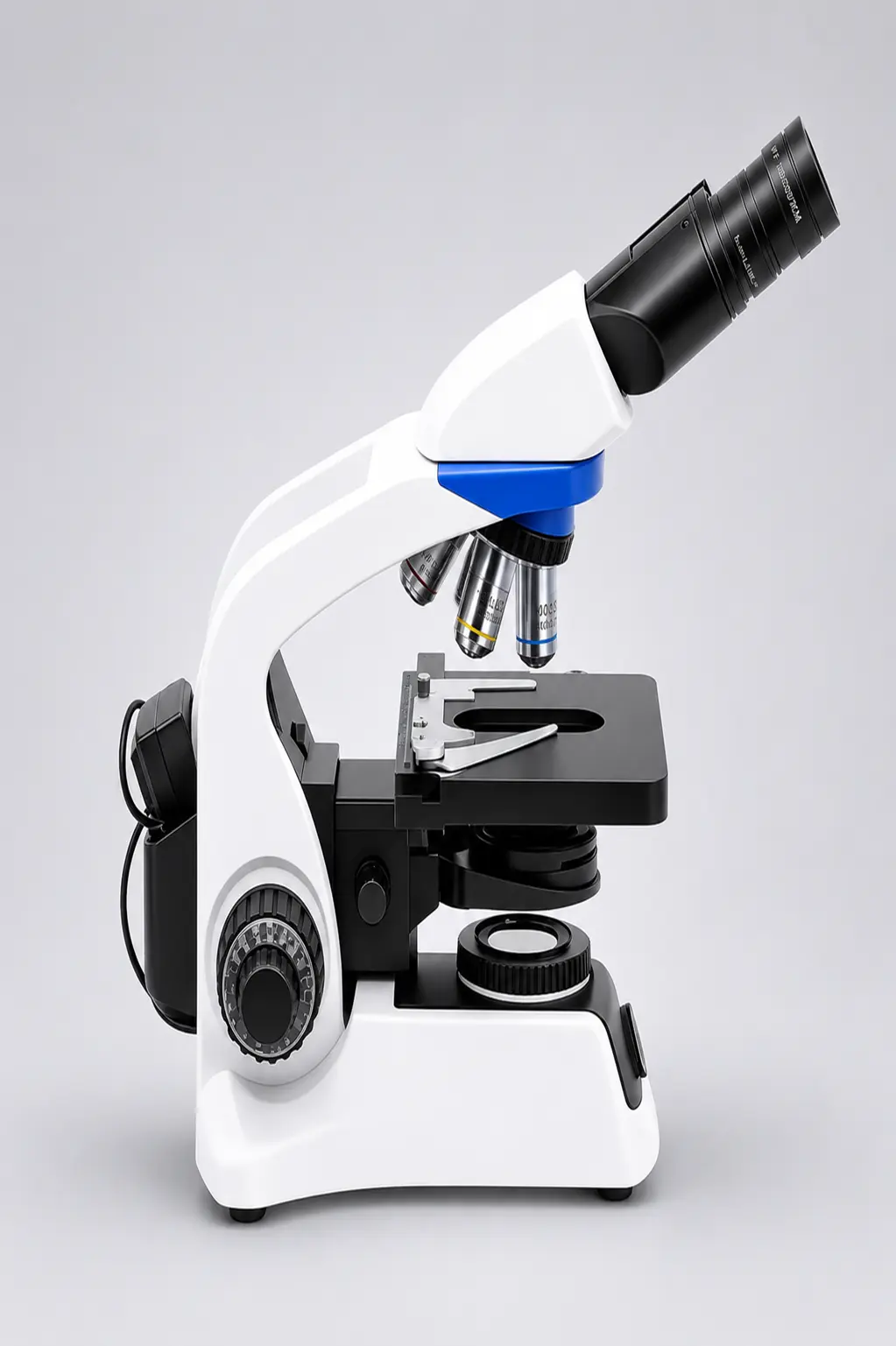

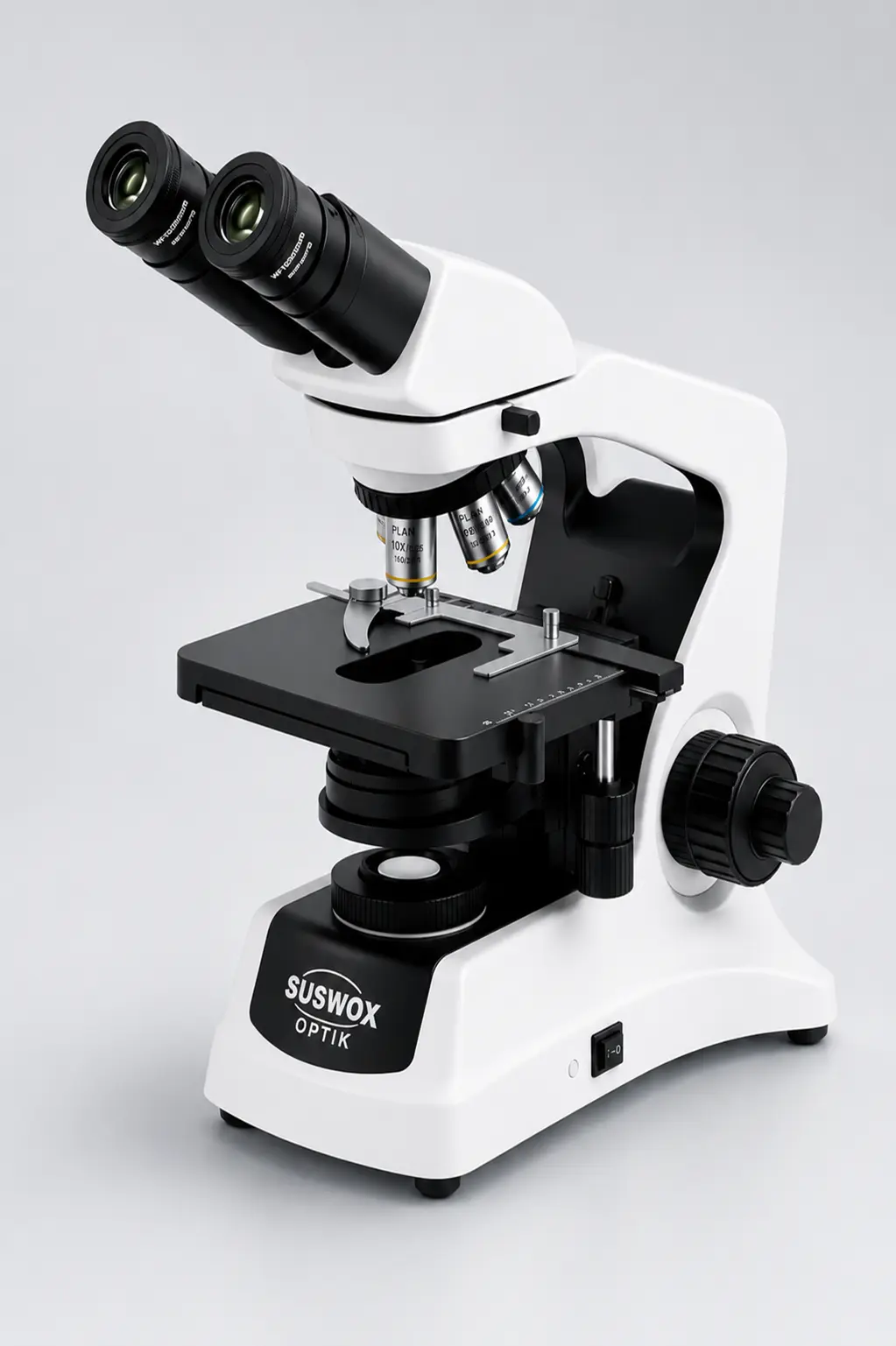

APEX Bi Microscope
APEX (Infinity Binocular Research Microscope)
The SUSWOX APEX is a premium infinity-corrected biological microscope engineered for advanced clinical diagnostics, pharmaceutical research, life sciences, universities and industrial laboratories. Designed around a high-performance infinity optical system, the APEX delivers exceptional resolution, flat-field imaging and superior colour fidelity across the entire field of view.
Featuring Full Plan Infinity Achromatic objectives, a Siedentopf binocular viewing head, precision mechanical components and Köhler LED illumination, the APEX provides research-grade optical performance with outstanding ergonomics for prolonged laboratory use. Its modular architecture supports advanced microscopy techniques including darkfield, phase contrast, fluorescence and polarization, making it a future-ready platform for demanding applications.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- Infinity Corrected Optical System
- Professional Siedentopf Binocular Viewing Head
- Infinity Achromatic Objectives
- PL 10X/22 mm Wide Field Eyepieces
- High Eye Point Optics with Diopter Adjustment
- Large Graphite-Coated Double Layer Mechanical Stage
- Precision Inward Quadruple Revolving Nosepiece
- Köhler LED Illumination System
- Precision Rack & Pinion Coaxial Focusing
- Ergonomic Low Position Controls
- Bright 5W LED Illumination with Iris Diaphragm
- Compatible with Phase Contrast, Darkfield, Polarization & Fluorescence
- Heavy-Duty Research Grade Construction
- CE, ISI & ISO Certified
Technical Data
| Specification | Details |
| Model | APEX |
| Microscope Type | Infinity Corrected Research Biological Microscope |
| Viewing Head | Siedentopf Binocular Head, 45° Inclined, 360° Rotatable |
| Interpupillary Distance | 52–76 mm |
| Diopter Adjustment | ±5 on Left Eyepiece |
| Eyepieces | PL 10X / 22 mm High Eye Point |
| Optical System | Infinity Corrected Optical System |
| Objectives | Infinity Achromatic 4X, 10X, 40X(Spring), 100X Oil(Spring) |
| Optional Objectives | 20X, 60X, LWD 40X |
| Nosepiece | Inward Quadruple Revolving Nosepiece |
| Mechanical Stage | Double Layer Graphite-Coated Mechanical Stage (175 × 145 mm) |
| Stage Travel | 70 × 50 mm |
| Condenser | Abbe N.A.1.25 with Iris Diaphragm (Köhler) |
| Focusing | Coaxial Coarse & Fine Focus, Fine Division 0.002 mm |
| Illumination | 5W LED with Adjustable Brightness & Iris Diaphragm |
| Filters | Blue, Green, Yellow & Ground Glass (Optional) |
| Camera Adapter | 0.3X / 0.4X / 0.75X C-Mount (Optional) |
| Power Supply | AC 100–240V, 50/60Hz, DC 12V / 1A Output |
| Certifications | CE, ISI & ISO |
What’s in the Box
Standard Package
- SUSWOX APEX Infinity Microscope
- Siedentopf Binocular Viewing Head
- Pair of PL 10X/22 mm Eyepieces
- Infinity Objective Set (4X, 10X, 40X, 100X Oil)
- Köhler Abbe Condenser with Iris Diaphragm
- Built-in 5W LED Illumination
- Power Adapter
- Blue Filter
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Cloth
- Lens Cleaning Tissue
- User Manual
Optional Accessories
- Full Plan Infinity Achromatic Objective Set
- 20X, 60X & LWD Objectives
- Darkfield Kit
- Phase Contrast Kit
- Polarizing Kit
- Fluorescence Attachment
- C-Mount Camera Adapter (0.3X / 0.4X / 0.75X)
- Digital Camera System
- Image Analysis Software
- Camera Focusing Attachment
- Ground Glass Filters
- Multi-Head Attachment
- Wooden Carrying Case
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
