SKC 400 R Lab Microscope

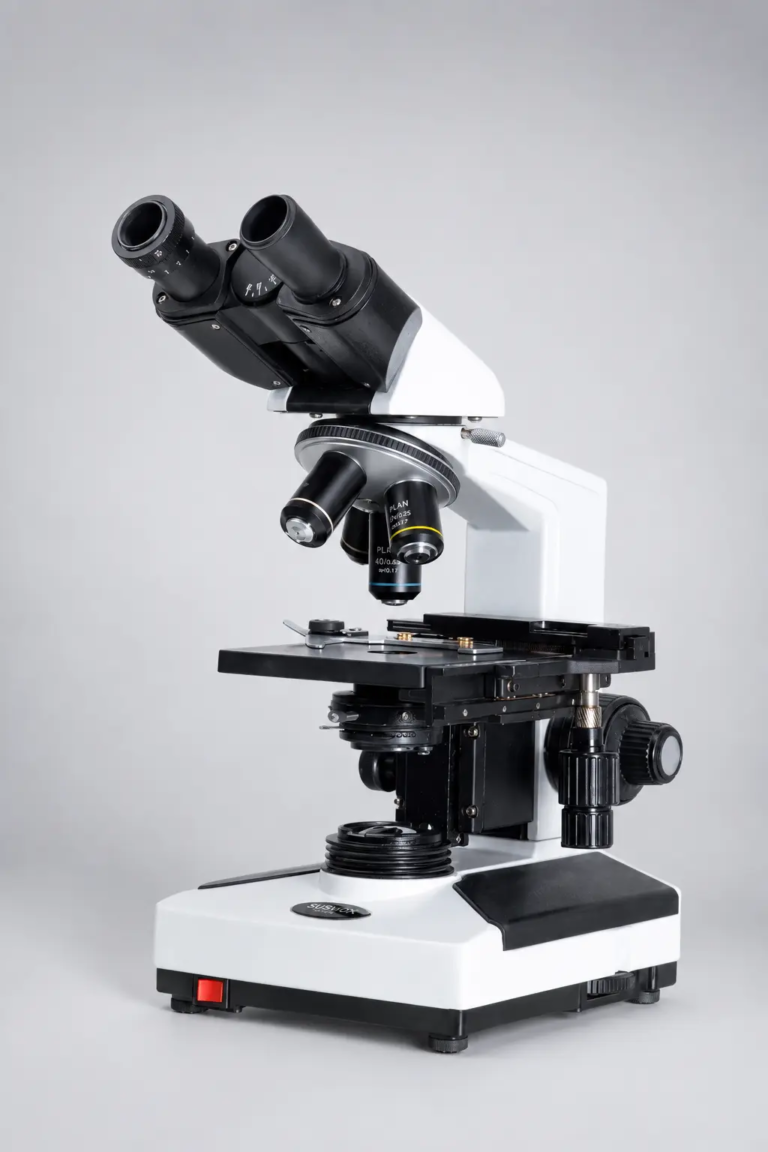

SKC-400R (Advanced Biological Binocular Microscope)
The SUSWOX SKC-400R is a premium biological binocular microscope developed for pathology laboratories, life science research, universities, pharmaceutical quality control and industrial laboratories. Designed with ergonomics and precision in mind, the SKC-400R combines high-contrast Semi-Plan/Plan Achromatic optics with a smooth ball-bearing mechanical system to deliver exceptional image quality and effortless operation.
Its rigid metal construction, advanced optical coatings and precision-engineered focusing mechanism ensure long-term reliability, while the modular architecture allows future upgrades such as phase contrast, fluorescence, digital imaging and image analysis. The SKC-400R is ideal for laboratories seeking research-grade performance at an affordable investment.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- Ergonomic Binocular Viewing Head with 360° Rotation
- High Eye Point WF10X Wide Field Eyepieces
- High Contrast Semi-Plan / Plan Achromatic Objectives
- Tropicalized Anti-Fungal, Anti-Bacterial & Anti-Reflection Coated Optics
- Precision Ball-Bearing Quadruple Nosepiece
- Low Position X-Y Mechanical Stage with Smooth Ball Bearing Motion
- Precision Coaxial Coarse & Fine Focusing System
- Heavy-Duty Metal Body with Wire Guide Mechanism
- Built-in Bright 3W LED Illumination (Optional 5W/10W LED)
- Optional Köhler Illumination
- Adjustable Light Intensity
- Element & Illumination Intensity Display
- Universal 90–240V SMPS Power Supply
- Camera Upgrade Ready
- Compatible with Phase Contrast, Darkfield, Polarization and Fluorescence
- CE, ISI & ISO Certified
Full Technical Data
| Specification | Details |
| Model | SKC-400R |
| Microscope Type | Advanced Biological Binocular Microscope |
| Viewing Head | Binocular, 30°/45° Inclined, 360° Rotatable |
| Interpupillary Distance | 54–75 mm |
| Eyepiece | High Eye Point WF10X, FOV 18/20 mm, Diopter ±5 |
| Optical System | Finite Optical System, Colour Corrected, Multi-Layer Hard Coated, Tropicalised Anti-Fungal, Anti-Bacterial & Anti-Reflection Coated |
| Objectives | Semi-Plan / Plan Achromatic 4X, 10X, 40X, 100X Oil |
| Nosepiece | Dust-Protected Ball-Bearing Quadruple with Positive Click Stop |
| Mechanical Stage | Hard-Coated Double Layer Mechanical Stage (145 × 125 mm) |
| Stage Travel | 50 × 80 mm |
| Condenser | Abbe N.A.1.25 with Iris Diaphragm & Filter Slot |
| Focusing | Low Position Coaxial Coarse & Fine Focus |
| Coarse Focus Range | 18–30 mm |
| Fine Focus Division | 0.02 mm / 0.01 mm per Rotation |
| Illumination | 3W LED Standard (Optional 5W/10W LED or Halogen) |
| Light Control | Adjustable Brightness with Centre Presetting |
| Power Supply | 90–240V AC, 50Hz, SMPS |
| Body | Heavy-Duty Ergonomic Metal Body with Ball Bearing & Wire Guide Movements |
| Certifications | CE, ISI & ISO |
What’s in the Box
Standard Package
- SKC-400R Binocular Microscope
- Pair of WF10X High Eye Point Eyepieces
- Semi-Plan Objective Set (4X, 10X, 40X, 100X Oil)
- Abbe Condenser with Iris Diaphragm
- Built-in LED Illumination System
- Blue / White Filter
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Tissue Paper
- Power Cable
- User Manual
Optional Accessories
- Rackless Stage
- Double Plate Mechanical Stage
- Plan 20X & 60X Objectives
- Plan Darkfield Objectives
- Object Micrometer
- Pointer Eyepiece
- Micrometer Eyepiece
- HWF 10X / 15X / 20X Eyepieces
- Battery Backup (Up to 2 Hours)
- Multi-Head Attachment
- Phase Contrast Kit
- Polarizing Kit
- Darkfield Condenser
- C-Mount Adapters (0.35X / 0.5X / 0.66X / 1X)
- Heating Stage
- Teaching Head
- Image Analysis Software
- Fluorescence Unit
- Infinity Corrected System
- Apochromatic Objectives
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
