SK-77 I Lab Microscope

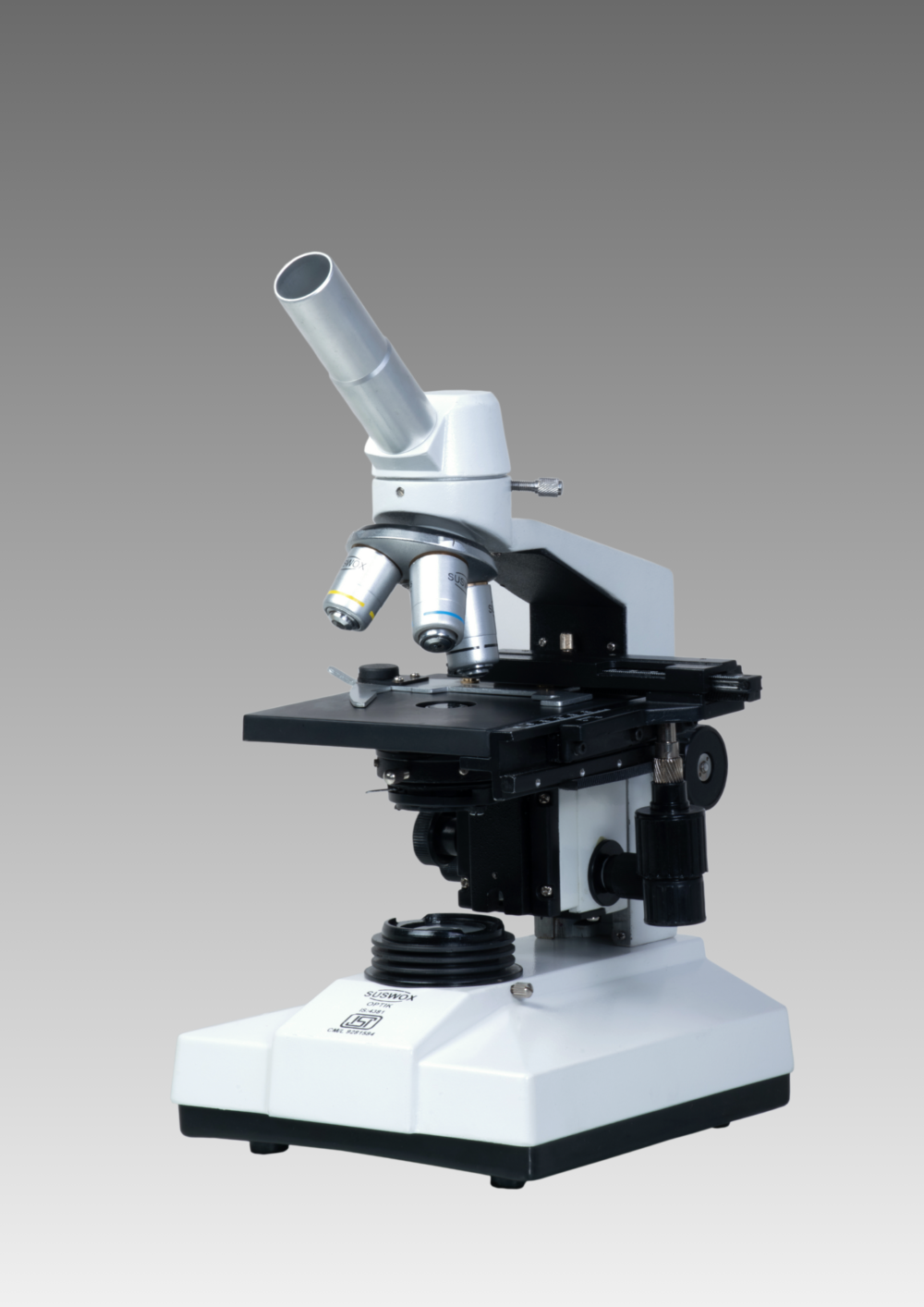

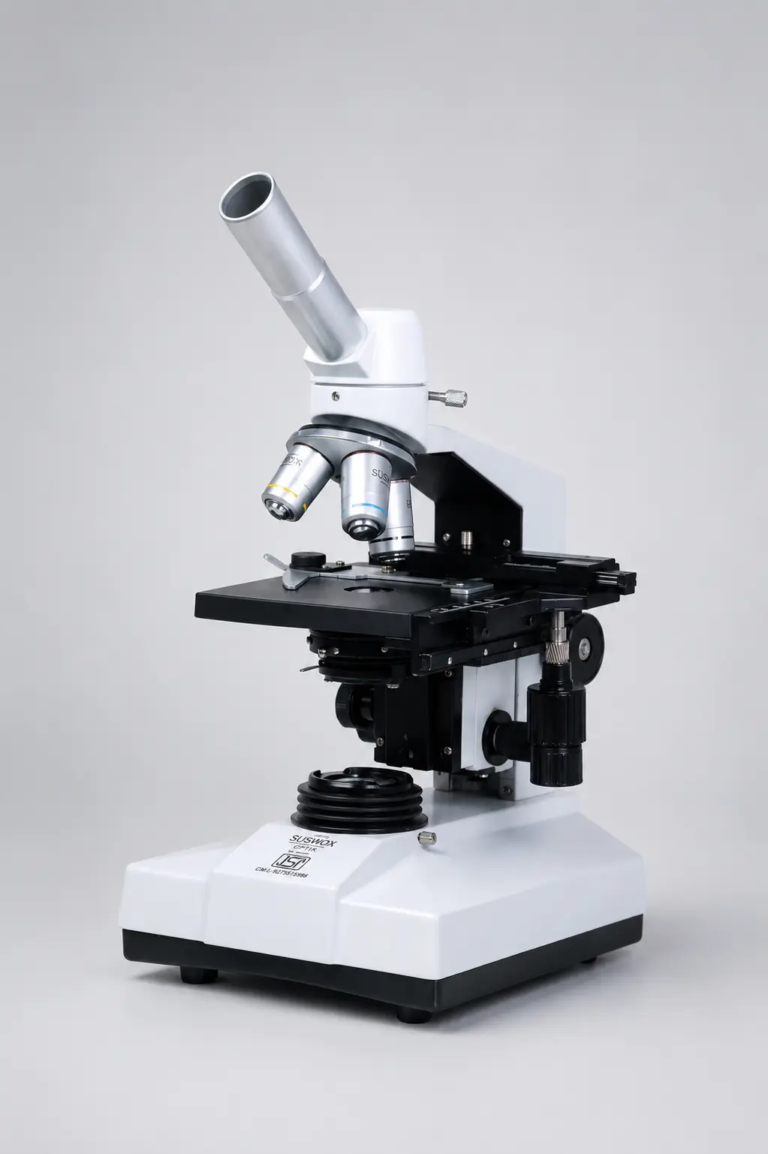

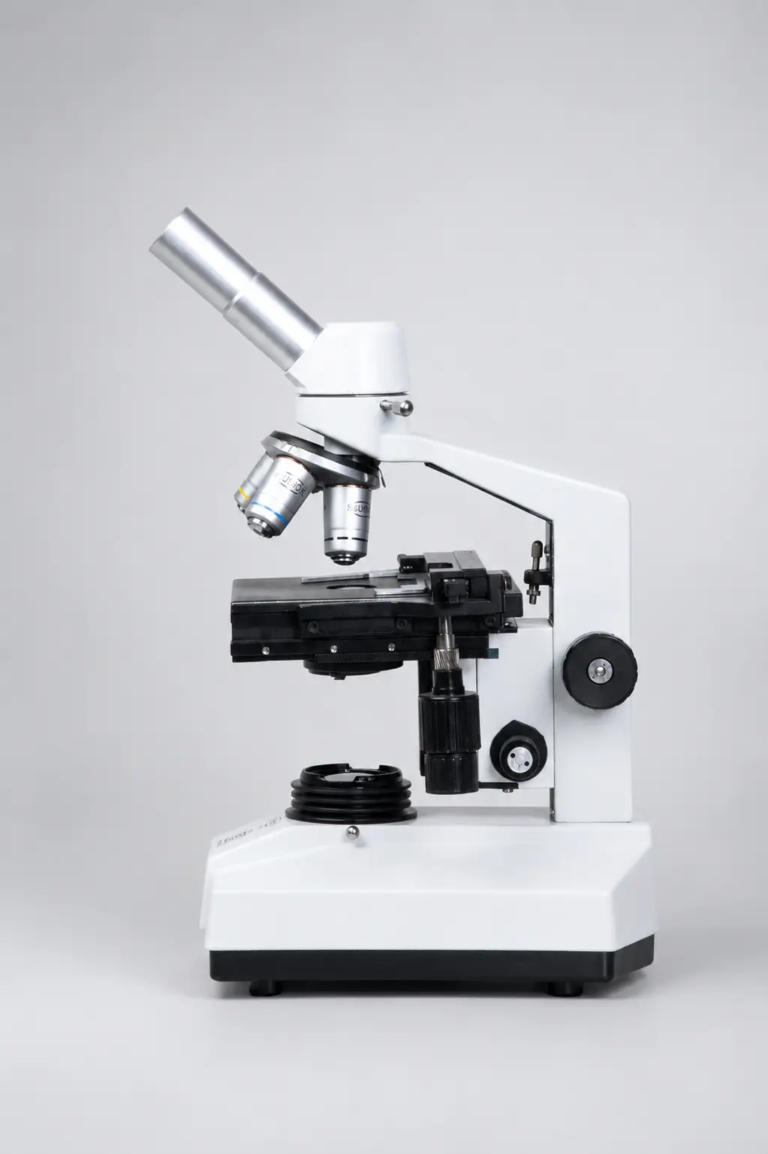

SK-77i (Monocular Pathological Microscope)
The SUSWOX SK-77i is a high-performance monocular pathological microscope designed for routine clinical diagnostics, biological laboratories, educational institutions and industrial inspection. Combining precision optics with a rugged ergonomic design, the SK-77i offers exceptional image clarity, reliable mechanical performance and long-term durability. Its modular architecture supports future upgrades, making it an excellent choice for laboratories seeking dependable performance with expansion capability.
Built around SUSWOX’s 40+ years of microscope manufacturing expertise, the SK-77i features premium optical coatings, precision focusing and bright LED illumination for comfortable daily operation.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- 45° Inclined Monocular Viewing Head
- 360° Rotatable Observation Head
- High Eye Point WF10X Wide Field Eyepiece
- Semi-Plan or Plan Achromatic Objectives
- Finite or Infinite Optical System
- Anti-Fungal, Anti-Bacterial & Anti-Reflection Coated Optics
- Dust-Protected Ball-Bearing Quadruple Nosepiece
- Precision Mechanical Stage with Low Position Controls
- Separate Coarse & Fine Focusing System
- 3W / 5W LED Illumination
- Universal 90–240V SMPS Power Supply
- Integrated Carrying Handle
- Built-in Daylight & Neutral Density Filters
- CE, ISI & ISO Certified
- 2-Year Warranty
Technical Data
| Specification | Details |
| Model | SK-77i |
| Microscope Type | Monocular Pathological Microscope |
| Viewing Head | Monocular, 45° Inclined, 360° Rotatable |
| Optical System | Finite / Infinite Optical System, Multi-layer Hard Coated, Anti-Fungal, Anti-Bacterial & Anti-Reflection Coated |
| Eyepiece | High Eye Point WF10X, FOV 16/18 mm, Diopter ±5 |
| Objectives | Semi-Plan / Plan Achromatic 4X, 10X, 40X(S), 100X Oil |
| Nosepiece | Dust-Protected Ball-Bearing Quadruple (Optional Quintuple) |
| Mechanical Stage | Low Position X-Y Mechanical Stage, 145 × 125 mm |
| Stage Travel | 50 × 80 mm |
| Condenser | Abbe N.A. 1.25 with Iris Diaphragm & Filter Slot |
| Focusing | Separate Coarse & Fine Focus with Tension Control & Upper Limit Stop |
| Illumination | Fixed / Köhler 3W or 5W LED |
| Optional Illumination | 6V/20W or 12V/30W Halogen |
| Filters | Daylight & Neutral Density |
| Power Supply | 90–240V AC, 50Hz, SMPS |
| Certifications | CE, ISI & ISO |
| Warranty | 2 Years |
What’s in the Box
Standard Package
- SK-77i Monocular Microscope
- WF10X Eyepiece
- Objective Set (4X, 10X, 40X(S), 100X Oil)
- Abbe Condenser
- LED Illumination Unit
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Cloth
- Lens Cleaning Tissue
- Power Cable
- User Manual
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
