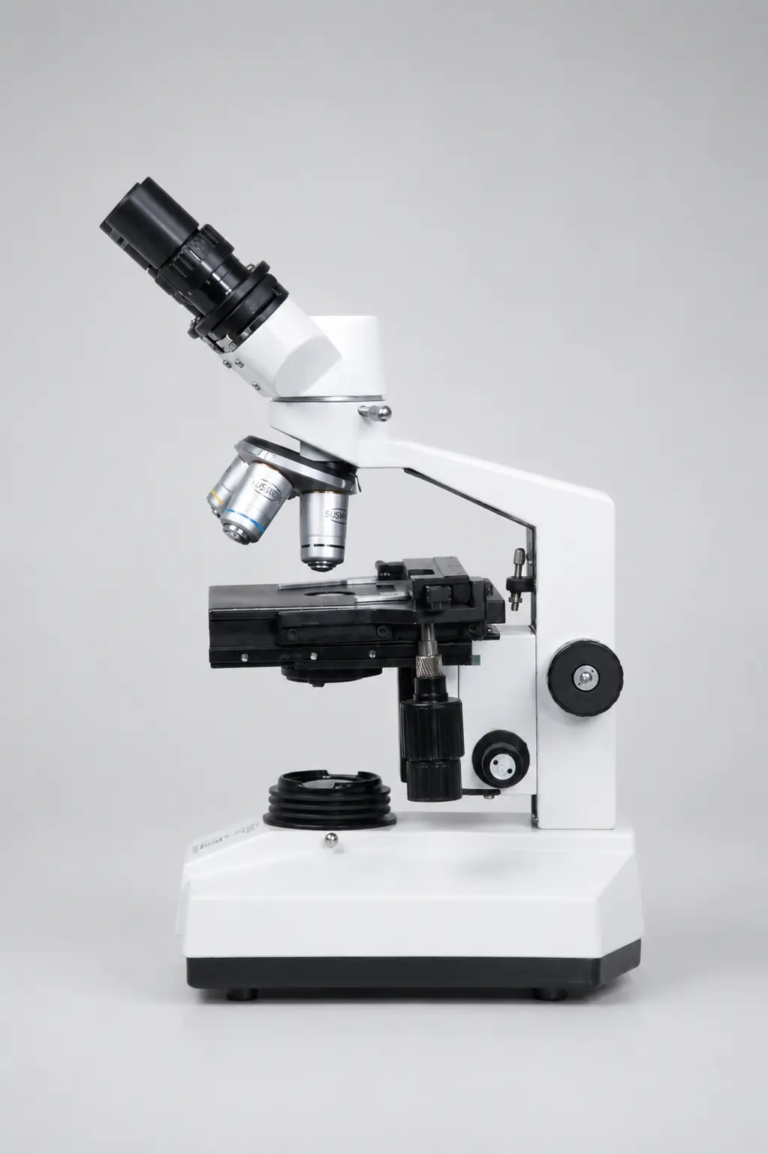

SK-77 BI Lab Microscope
SK-77 Bi (Binocular Pathological Microscope)
The SUSWOX SK-77 Bi is a professional binocular pathological microscope designed for hospitals, pathology laboratories, universities, pharmaceutical industries and research facilities. Its ergonomic binocular viewing head, precision mechanical stage and premium optical system ensure fatigue-free observation with excellent image contrast and resolution.
Engineered for reliability and long service life, the SK-77 Bi provides a perfect balance between advanced optical performance and ease of operation, making it suitable for routine diagnostics as well as advanced laboratory applications.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- 45° Inclined Binocular Viewing Head
- 360° Rotatable Head
- Adjustable Interpupillary Distance (54–74 mm)
- High Eye Point WF10X Wide Field Eyepieces
- Semi-Plan / Plan Achromatic Objectives
- Multi-layer Optical Coatings
- Ball-Bearing Quadruple Nosepiece
- Precision Mechanical Stage
- Separate Coarse & Fine Focusing
- Adjustable LED Illumination with Eco Mode
- Integrated Carrying Handle
- Universal Power Supply
- CE, ISI & ISO Certified
2-Year Warranty
Technical Data
| Specification | Details |
| Model | SK-77 Bi |
| Microscope Type | Binocular Pathological Microscope |
| Viewing Head | Binocular, 45° Inclined, 360° Rotatable |
| Interpupillary Distance | 54–74 mm |
| Optical System | Finite / Infinite Optical System |
| Eyepieces | WF10X High Eye Point, FOV 16/18 mm |
| Objectives | Semi-Plan / Plan Achromatic 4X, 10X, 40X(S), 100X Oil |
| Nosepiece | Quadruple Ball-Bearing |
| Mechanical Stage | Low Position Mechanical Stage |
| Stage Size | 145 × 125 mm |
| Stage Travel | 50 × 80 mm |
| Condenser | Abbe N.A.1.25 |
| Focusing | Separate Coarse & Fine Focus |
| Illumination | 3W / 5W / 10W LED with Eco Mode |
| Optional Illumination | Halogen |
| Power Supply | 90–240V AC |
| Certifications | CE, ISI & ISO |
| Warranty | 2 Years |
What’s in the Box
Standard Package
- SK-77 Bi Binocular Microscope
- Pair of WF10X Eyepieces
- Objective Set (4X, 10X, 40X(S), 100X Oil)
- Abbe Condenser
- LED Illumination Unit
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Cloth
- Lens Cleaning Tissue
- Power Cable
- User Manual
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
