SC-300 Ti Lab Microscope

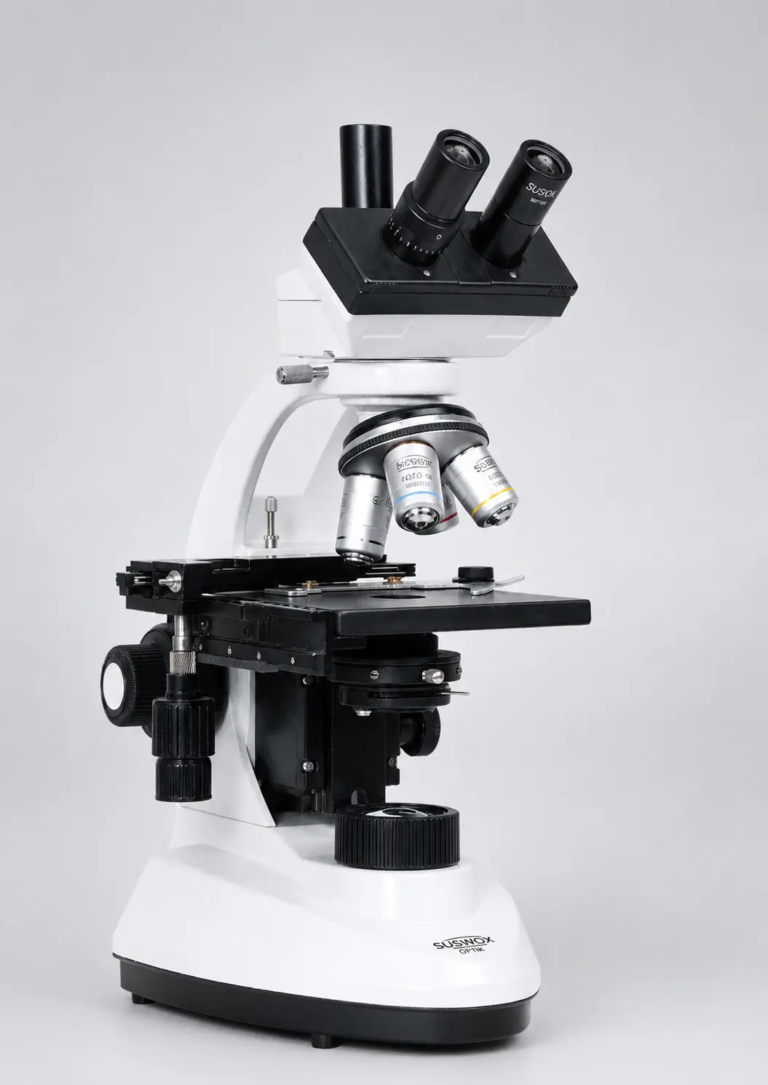

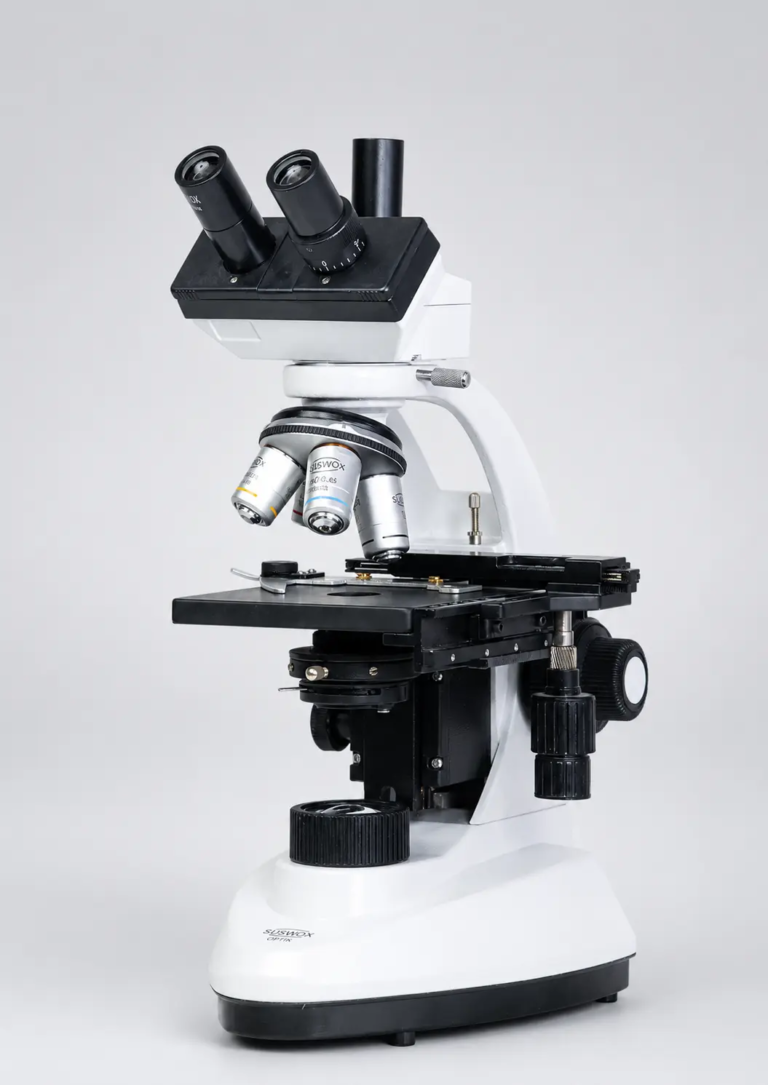

SC-300 Ti (Trinocular Advanced Laboratory Microscope)
The SUSWOX SC-300 Ti is the flagship model of the SC Series, developed for advanced laboratory research, pathology, pharmaceutical analysis and digital microscopy. Featuring a professional trinocular viewing head with dedicated camera compatibility, it enables high-quality image capture, documentation, processing and analysis for modern laboratory workflows.
Its premium Semi-Plan/Plan Achromatic optical system, precision mechanical components and modular architecture make the SC-300 Ti an ideal solution for research laboratories requiring outstanding optical performance with future-ready expandability.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- Professional Trinocular Viewing Head
- Camera-Ready Digital Imaging Platform
- 360° Rotatable Observation Head
- 2-Position Beam Splitter
- Semi-Plan / Plan Achromatic Objectives
- High Eye Point WF10X Eyepieces
- Ball-Bearing Quadruple Nosepiece
- Precision Mechanical Stage
- Coaxial Coarse & Fine Focus
- Adjustable LED Illumination
- Köhler Illumination Compatible
- Compatible with Image Analysis Software
- Heavy-Duty Metal Construction
- Universal SMPS Power Supply
- CE, ISI & ISO Certified
- 2-Year Warranty
Technical Data
| Specification | Details |
| Model | SC-300 Ti |
| Microscope Type | Advanced Laboratory Trinocular Microscope |
| Viewing Head | Trinocular, 30°/45° Inclined, 360° Rotatable |
| Camera Port | Two-Position Beam Splitter |
| Interpupillary Distance | 48–75 mm |
| Optical System | Finite / Infinite Optical System |
| Eyepieces | WF10X High Eye Point, FOV 16/18 mm |
| Objectives | Semi-Plan / Plan Achromatic 4X, 10X, 40X, 100X Oil |
| Nosepiece | Ball-Bearing Quadruple (Optional Quintuple) |
| Mechanical Stage | Precision X-Y Mechanical Stage |
| Stage Size | 145 × 125 mm |
| Condenser | Abbe N.A.1.25 with Iris Diaphragm |
| Focusing | Coaxial Coarse & Fine Focus |
| Illumination | 3W LED (Optional 5W/10W LED or Halogen) |
| Camera Compatibility | C-Mount Adapter (0.35X / 0.5X / 0.66X / 1X) |
| Power Supply | 90–240V AC SMPS |
| Certifications | CE, ISI & ISO |
| Warranty | 2 Years |
What’s in the Box
Standard Package
- SC-300 Ti Trinocular Microscope
- Trinocular Viewing Head
- Pair of WF10X High Eye Point Eyepieces
- Semi-Plan Objective Set (4X, 10X, 40X, 100X Oil)
- Abbe Condenser with Iris Diaphragm
- Built-in LED Illumination
- Vinyl Dust Cover
- 10 ml Immersion Oil
- Cleaning Cloth
- Lens Cleaning Tissue
- Power Cable
- User Manual
Optional Accessories
- Rackless Stage
- Double Plate Mechanical Stage
- Plan 20X & 60X Objectives
- Plan Darkfield Objectives
- Object Micrometer
- Pointer Eyepiece
- Micrometer Eyepiece
- HWF 10X / 15X / 20X Eyepieces
- C-Mount Adapters (0.35X / 0.5X / 0.66X / 1X)
- Phase Contrast System
- Darkfield Condenser
- Polarizing Kit
- Heating Stage
- Teaching Head
- Multi-Head Attachment
- Image Analysis Software
- Infinity Corrected System
- Fluorescence Unit
- Apochromatic Objectives
- Battery Backup (Up to 2 Hours)
- Wooden Carrying Case
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
