IMX-Ti Inverted Microscope

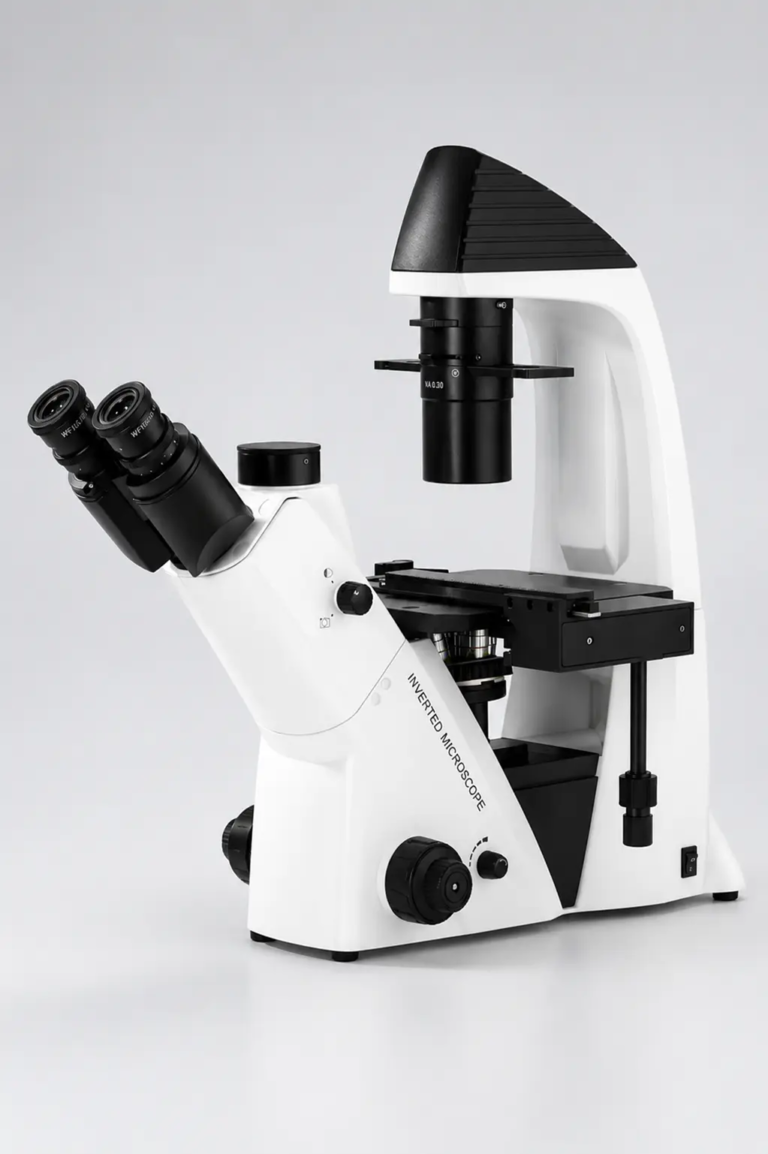

IMX-500 Ti (Inverted Biological Trinocular Microscope)
The SUSWOX IMX-500 Ti is the flagship inverted biological microscope in the IMX Series, engineered for advanced cell biology, stem cell research, IVF laboratories, pharmaceutical development and live-cell imaging. Featuring a professional trinocular viewing head, the IMX-500 Ti enables seamless integration with digital cameras for real-time image capture, documentation, measurement and analysis.
Its long working distance infinity optical system, large research-grade stage and support for bright field, phase contrast and fluorescence microscopy provide exceptional flexibility for demanding laboratory applications. The microscope is specifically designed for observing living cells and tissues in culture dishes, flasks and multi-well plates while maintaining excellent image quality and ergonomic operation.
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Key Features
- Professional Siedentopf Trinocular Viewing Head
- Dedicated Camera Port for Digital Imaging
- Long Working Distance Infinity Optical System
- Bright Field & Phase Contrast Using Common Objectives
- LWD Infinity Plan Objectives
- Quintuple Nosepiece
- Large Research Mechanical Stage
- Compatible with 96-Well Culture Plates
- Long Working Distance Condenser
- Köhler LED Illumination
- Fluorescence Upgrade Compatible
- Digital Imaging & Measurement Software Compatible
- Large Variety of Culture Dish Holders
- Camera Ready for Research Documentation
- Modular Research Platform
- CE, ISI & ISO Certified
Technical Data
| Specification | Details |
| Model | IMX-500 Ti |
| Microscope Type | Inverted Biological Trinocular Microscope |
| Viewing Head | Siedentopf Trinocular Head, 45° Inclined |
| Interpupillary Distance | 48–76 mm |
| Light Distribution | 100:0 or 0:100 (Eyepiece / Camera) |
| Eyepieces | WF10X / 22 mm Wide Field |
| Optical System | Long Working Distance Infinity Optical System |
| Objectives | LWD Infinity Plan 4X, 10X, 20X, 40X |
| Optional Objectives | LWD Infinity Plan Phase Contrast 4X, 10X, 20X, 40X |
| Nosepiece | Quintuple Revolving Nosepiece |
| Mechanical Stage | 210 × 241 mm Research Stage |
| Stage Travel | 128 × 80 mm |
| Condenser | Long Working Distance Condenser N.A.0.30 |
| Working Distance | 72 mm (with condenser), 195 mm (without condenser) |
| Observation Modes | Bright Field, Phase Contrast, Fluorescence (Optional) |
| Illumination | Köhler LED or 6V/30W Halogen |
| Filters | Blue, Green, Amber & Grey |
| Camera Compatibility | 0.5X / 0.75X / 1X Focus Adjustable C-Mount |
| Fluorescence | Optional B, G, V & UV Filter Cubes |
| Applications | Cell Biology, IVF, Tissue Culture, Stem Cell Research, Pharmaceutical Research |
| Certifications | CE, ISI & ISO |
What’s in the Box
Standard Package
- SUSWOX IMX-500 Ti Microscope
- Siedentopf Trinocular Viewing Head
- Pair of WF10X/22 mm Eyepieces
- LWD Infinity Plan Objectives (4X, 10X, 20X, 40X)
- Quintuple Nosepiece
- Long Working Distance Condenser
- Large Mechanical Stage
- Universal Culture Dish Holder
- Glass Holder
- Köhler LED Illumination System
- Power Adapter
- Dust Cover
- User Manual
- Quality Inspection Certificate
Optional Accessories
- LWD Phase Contrast Objective Set
- Phase Contrast Slider
- HDMI/USB Scientific Camera
- C-Mount Adapters (0.5X / 0.75X / 1X)
- Image Analysis Software
- Fluorescence Attachment (100W Mercury or 5W LED)
- B, G, V & UV Fluorescence Filter Sets
- Blood Cell Counter Holder
- Additional Culture Dish Holders
- Calibration Slides
- Polarizer Set
- Live Cell Imaging Accessories
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
