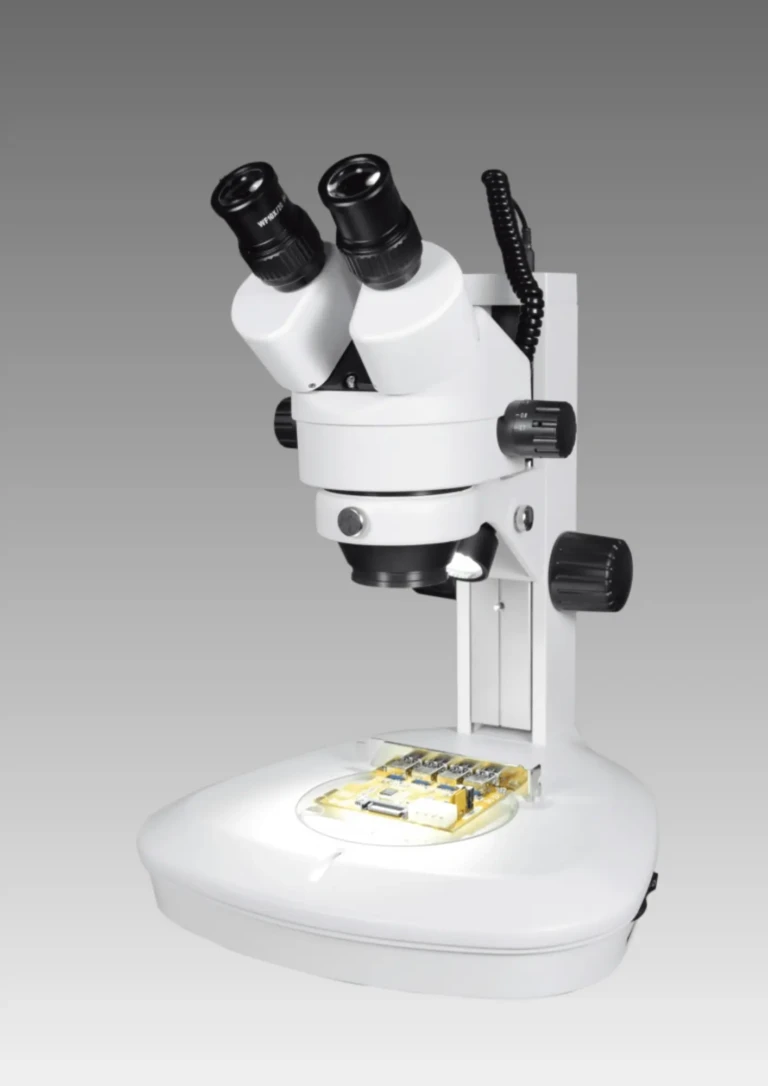

STZ-Bi Stereo Microscope
Binocular Viewing head
1:5.2
0.7x-4.5x
7x to 45x continuous zoom
10x FOV 20 mm Eyepieces
Need some help?
Contact Us
Product ships in:
3-5 Business Day
Achieve exceptional clarity and precision with the STZ-Bi Stereo Microscope, an advanced optical instrument designed for detailed observation and analysis.
| Mechanical Body | Lateral zoom control movement. Incident 3W LED lamp. Track stand with fan type base. Clip for holding specimen. |
|---|---|
| Optical System | GREENOUGH Stereoscopic |
| Observation Head | binocular Observation head inclined at 450, rotatable at 3600 , IPD 55-75 mm |
| Eyepiece | Wide Field 10x FOV 20 mm with diopter and eye guard |
| Zoom Ratio | 1:5.2 |
| Zoom Objective | 0.7x-4.5x |
| Magnification Range | 7x to 45x with 10x Eyepiece |
| Working Distance | 115 mm with 10x Objective |
| Illumination System | 3.3 Watt – Incident transmitted light systems with LED lamps. Both lights regulated with power supply and has separate brightness controls. Homogeneous daylight 6500K, free of UV and IR emissions Universal V-V, Hz integrated power supply with voltage flux stabilizer. |
| Packing: Carrying Case | Styrofoam Packing Outer corrugated box. |
| Supplied with | User manual, Vinyl Dust cover, Cleaning cloth |
| Optional Accessories | Auxiliary Lens – 0.5, 2x, 1.5x Eyepieces- 15x, 20x |
