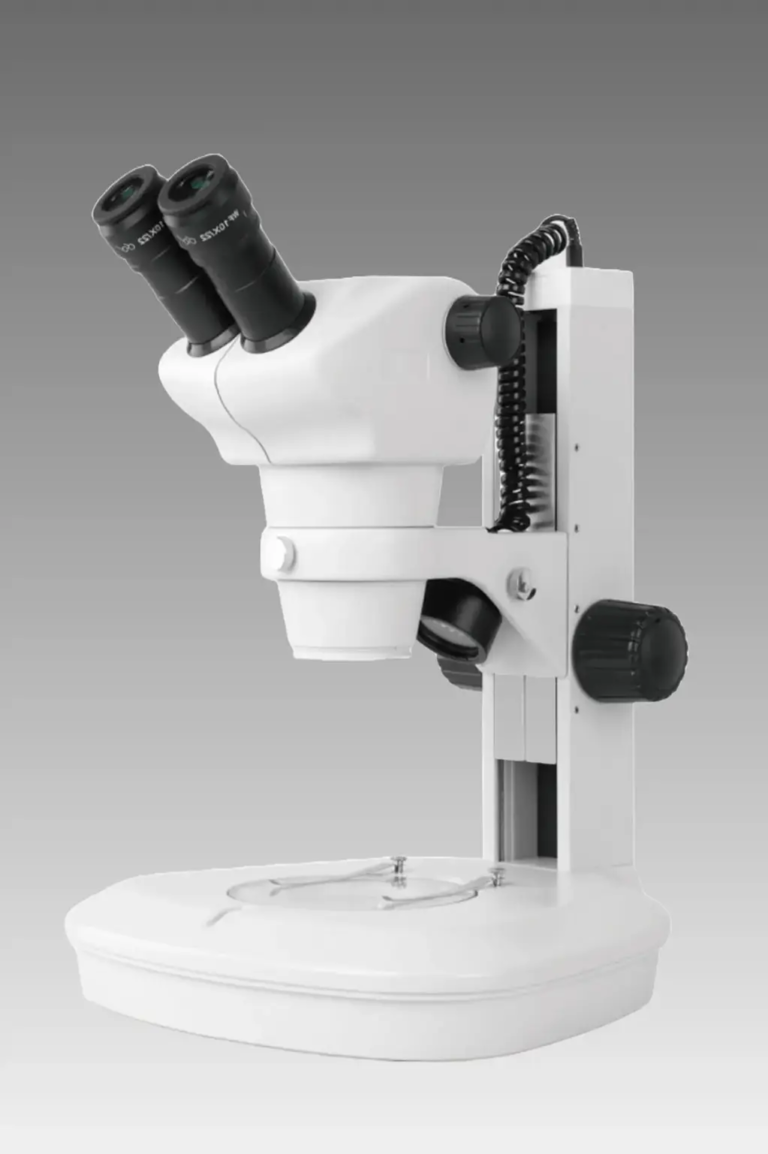

SPZ-Bi Stereo Microscope
Binocular Viewing Head
1:6.3
0.8x-5x
8x to 50 x continuous zoom
10x FOV 22 mm Eyepeices
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings
Experience unparalleled clarity and precision with the SPZ-Bi Stereo Zoom Microscope, a cutting-edge optical instrument designed for detailed observation and analysis.
| Mechanical Body | Lateral zoom control movement. Incident 3W LED lamp. Track stand with fan type base. Clip for holding specimen. |
|---|---|
| Optical System | GREENOUGH Stereoscopic |
| Observation Head | Binocular Observation head inclined at 450, rotatable at 3600 , IPD 55-75 mm |
| Eyepiece | Wide Field 10x FOV 22mm with diopter and eye guard |
| Zoom Ratio | 1:6.3 |
| Zoom Objective | 0.8x-5x |
| Magnification Range | 8x to 50x with 10x Eyepiece |
| Working Distance | 115 mm with 10x Objective |
| Illumination System | 3.3 Watt – Incident transmitted light systems with LED lamps. Both lights regulated with power supply and has separate brightness controls. Homogeneous daylight 6500K, free of UV and IR emissions Universal V-V, Hz integrated power supply with voltage flux stabilizer |
| Packing: Carrying Case | Styrofoam Packing Outer corrugated box. |
| Supplied with | User manual, Vinyl Dust cover, Cleaning cloth |
| Optional Accessories | Auxiliary Lens – 0.5 , 2x Eyepieces– 15x, 20x |
Where it earns its place
Built for benches that run all day
Before you order
Questions buyers actually
ask
Q1 What is the maximum magnification of the CXL Bi?
1000×. The WF10X eyepieces multiply with the 100X oil immersion objective, giving 40×, 100×, 400× and 1000× across the four positions on the nosepiece. Beyond 1000× you gain no additional detail with this optical system — you are only enlarging an image the numerical aperture has already limited.
Q2 Do I need immersion oil, and can I skip it?
You need it for the 100X objective. Without oil filling the gap between the coverslip and the front lens, light bends away at the glass–air boundary and the effective N.A. drops well below 1.25 — the image goes dim and soft. A vial is included in the box. Wipe the objective with lens tissue after each session.
Q3 What is the difference between semi-plan and plan achromatic objectives?
Semi-plan objectives give a flat, sharp image across roughly 80% of the field, with slight softening at the extreme edge. Plan objectives correct the full field but cost significantly more. For routine screening and teaching, semi-plan is the practical choice; for photomicrography where edge-to-edge sharpness is published, ask us about the plan upgrade.
Q4 LED or halogen — which should I specify?
LED for almost every lab. It runs at 50,000 hours against roughly 1,000 for halogen, stays cool so it does not dry your specimen, and holds colour temperature as you dim it. Halogen remains available if your protocol was validated on it or you need its warmer spectrum for particular stains.
Q5 Can a camera be attached to this microscope?
Yes. The sliding binocular head accepts our XCAM Mini and X Cam C-mount cameras through an adapter. If documentation is a daily requirement rather than an occasional one, consider a trinocular model instead so you keep both eyepieces and the camera port live at the same time.
Q6 What is the delivery time and where do you ship?
Stock units dispatch in 3–5 business days. We ship across India by surface and air freight, and export with wooden crating on request. Institutional and tender orders with specific documentation requirements are handled by our sales desk — call +91 8727015757.
Q7 How is it serviced and are spares available?
The unit carries a one-year warranty on body, optics and electricals. We stock spares — objectives, eyepieces, LED assemblies, stage parts — for ten years from the date of manufacture. Most issues are resolved over a video call; parts ship direct to your lab.
Q8 What is the price of the CXL Bi Lab Microscope?
Pricing depends on configuration (LED or halogen, objective set, camera adapter) and order quantity, so we quote per enquiry rather than list a single figure. Send your requirement through the form below or on WhatsApp and you will have a written quotation with GST and freight the same working day.
