CXL Bi Lab Microscope
Economical Binocular Pathological Microscope
10x wide field
4x/5x,10x, 40x/45x&100x
Ball Bearing Mechanical Stage
450 inclined Viewing Head
LED Illumination
Coaxial Fine and coarse focusing
Availability: In Stock
- Ships in 3-5 business days
- 1-year warranty on optics and body
- Installation guide by phone or video
- Spares stocked for 10 years
1000x
Maximum total magnification
1.25 N.A.
ABBE double-lens condenser
50,000 h
Rated LED lamp life
90–240 V
SMPS, handles Indian supply swings

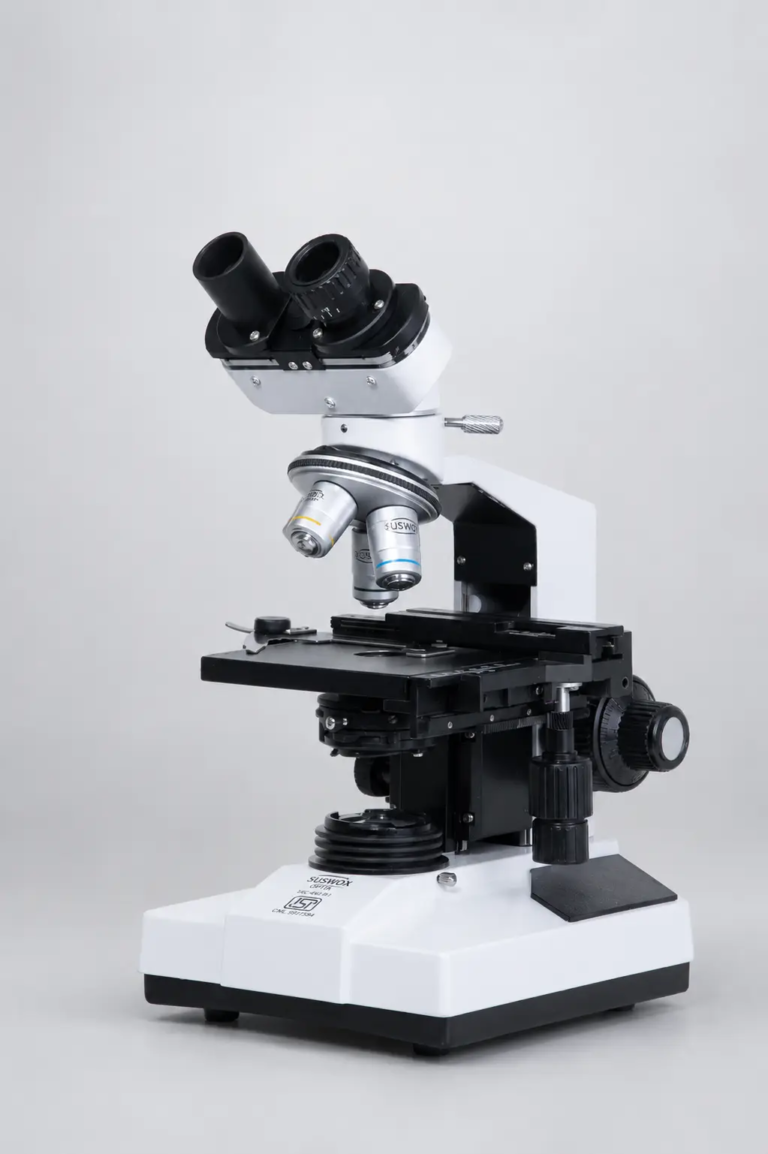

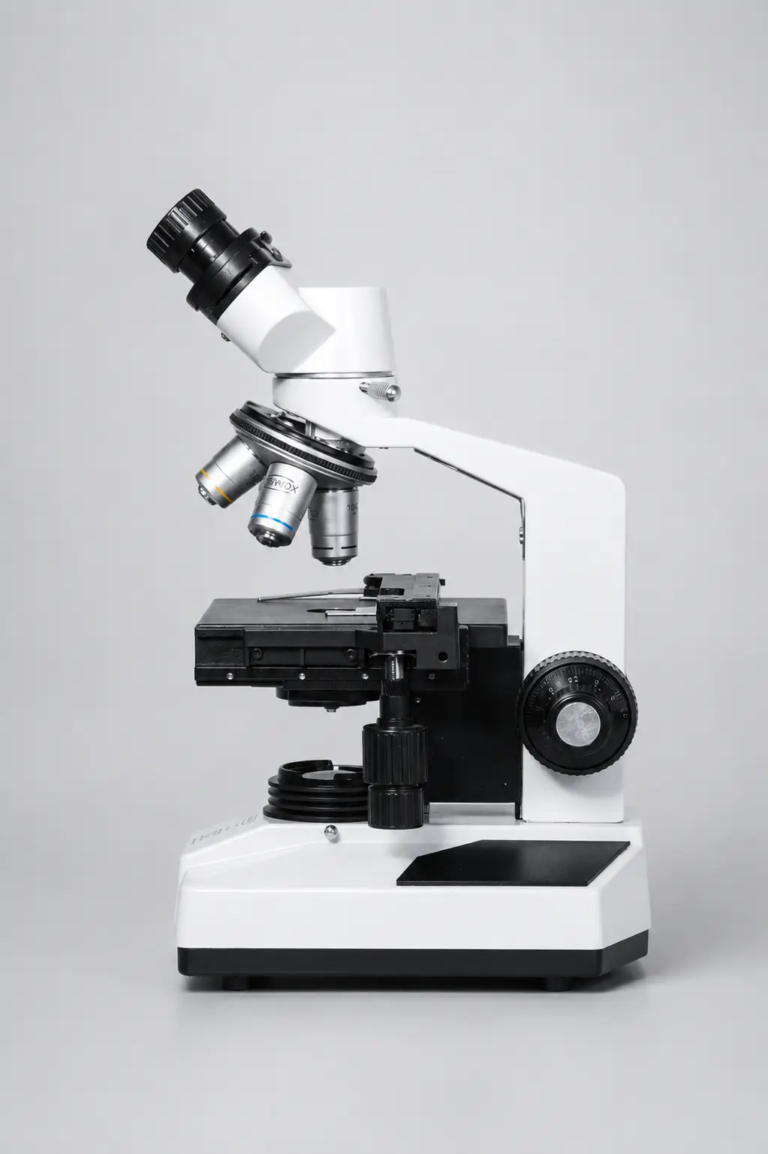

The CXL Bi Series Lab Microscope is a high-performance optical instrument designed for advanced biological research and laboratory applications.
| Body | Robust mould, ergonomic design sturdy body with three built in filters day light, and neutral density filters |
|---|---|
| Eyepiece | High Eye Point, Chromatic Corrected, Wide Field WF10X with FOV 18 mm with diopter adjustment on one eyepieces (±5) |
| Viewing Head | Binocular sliding head 450 inclined and 3600 rotatable with inter-pupillary distance 54 to 75mm |
| Objectives | |
| Semi-Plan Achromatic | |
| 4X, N.A. 0.10 | |
| 10X, N.A. 0.25 | |
| 40X, N.A. 0.65 | |
| 100X, N.A. 1.25 | |
| Condenser | Double Lens ABBE Condenser, N.A. 1.25 |
| Optical system | Finite optical system, multi-layered hard-coated, Color corrected, Anti-fungal, Anti- bacterial Coated, Anti Reflection coated |
| Mechanical stage | Single Layer mechanical stage right/left-hand control, hard-coated surface 145(X)x 125(Y)mm, low position coaxial movement, Travel range 50(X)x 80(Y)mm & vernier scale X-Y axis, precision:0.1mm |
| Nosepiece | Dust Protected Quadruple with Multiple ball-Bearing Rubber grip & Positive Click Stop |
| Illumination | Fixed/Koehler 3w LED with life hrs 50,000 or Halogen lamp 6v 20 w light, intensity adjustable, center pre-setting. |
| Power Supply | 90V-240V/50Hz AC, SMPS, transformer |
| Certification | CE, ISI, ISO |
Where it earns its place
Built for benches that run all day
The CXL Bi sits in the working middle of our range: more stage precision and optical correction than a teaching scope, without the cost of a plan-apochromatic research stand.
